FC/SC/ST/LC multi match 3.0/2.0 fiber optic patchcord from China manufacturer - Vichin Optical Communication Equipment Co.,Ltd

Product Detail

Model No.: SC

Production Capacity: 10000 pieces per week

Delivery Date: 30 days after the order

Place of Origin: Zhejiang, China (Mainland)

Return loss: ≥30dB

Operating wavelength: 1310,1510nm

Vibration: ≤0.2dB

Storage temperature: -45~85℃

Means of Transport: Ocean,Land,Air

Packing: 1PC/PVC bag ,120PCS/carton

Brand Name: VOC

Insertion loss: ≤0.3dB

Mating cycles: >1000 frequency

Exchange ablity: ≤0.2dB

Operating temperature: -40~75℃

Cable diameter: 3.0, 2.0, 0.9mm

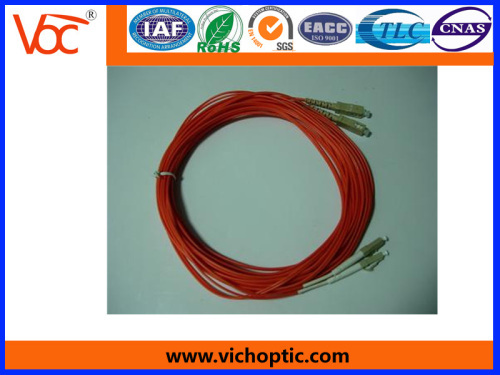

FC/SC/ST/LC multi match 3.0/2.0 fiber optic patchcord
Manufacturer
Optional Cable,Connector
CA, ISO, TLC certified

Vichin Optical Communication Limited

-Professional Manufactuer

We have been in fiber optic business for more than 7 years,owning 2 companies 1 factory.

FC/SC/ST/LC multi match 3.0/2.0 fiber optic patchcord
1,Specifiaction

Fiber Optic Patchcords / pigtails
Application
LAN Telecommunications, Data Cmmmunications, Component termination, CATV
Specifications
·High Repeatablity &Stability
· OD of cable:0.9mm,2.0mm,3.0mm…
· Ceramic Ferrule:PC,UPC&APC
· Cable Type:PVC,LSZH
· Fiber Type:9/125um 50/125,62.5/125um
Parameter
Connectors	UPC/PC(SM)	APC(SM)	PC(MM)
Reture Loss(dB)	≥50	≥60	≥35
Insertion Loss(dB)	≤0.2		≤0.3
Repeatability(dB)	≤0.1(1000matings)
Operating Temperature(°C)	-40~+80
Tensile Strength(N)	≥90(Φ3.0),≥70(Φ2.0)

3D PARAMETERS
Specifcation	Radius Of Curvature	Apex Offset	Fiber Undercut and Protrusion
Factory Standard	PC:10~25mm/APC:5~12mm	< 50um, ROC*a(a=Offset Angle, a≤0.2°)	-50nm~+50nm
IEC Standard	PC:10~25mm/APC:5~12mm		-0.02R³+1.3R²-32R+325 ~+50nm
GR-326-Core Standard	PC:7~25mm/APC:5~12mm		-125nm~+50nm

Superior Spec available

2,Order Information
